When it comes to Air, we've got the 'Workx!

Cleaner Air - HEPA Filtration Technology

AirWorkx™ air purification products are equipped with HEPA filters designed to meet strict regulations and our customer's demands for cleaner air and safer work environments. We utilize only the highest quality True HEPA filters (wood or metal frame) in our machines, which are available in many sizes and capacities. We take pride in a job well done and so you can count on our line of dependable, robust portable air filtration systems.

As adaptable as they are compact and rugged, our machines can be used right out of the box to help eliminate dust and debris in the air you breathe as well as to facilitate the removal of other harmful contaminants such as mold spores, asbestos and lead.

Medical Series: Environments and Applications

Our Medical Series portable air filtration systems each come standard with a aluminum framed, factory-tested True HEPA filter that is certified as 99.99% efficient (@0.3μ). The combination of a medical grade 99.99% HEPA filter and UV germicidal irradiation offers the highest level of protection for both health care professionals and patients.

Contractor and Specialty Series: Environments and Applications

Our Contractor and Specialty models can be used in mold, lead and asbestos abatement projects as well as in remediation of all sorts. Optional activated carbon filters for removal of chemical fumes and biological contaminants and dirt and debris bag filters are available. These machines are intended to provide a cleaner and healthier environment practically anywhere air quality and employee safety are of concern.

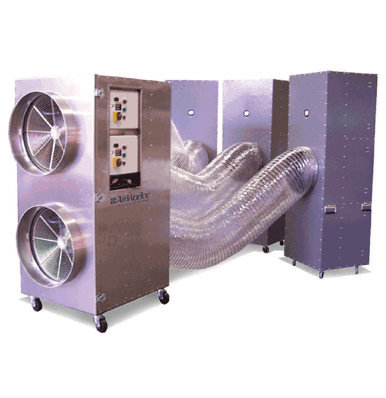

Air flow
18,000 cfm
Airflows are based on blower manufacturer curves. Different HEPA filters may cause the flow to vary.

Weight (with filters)
Blower Unit - 900 lbs

Filter Cabinet - 200 lbs (with filters installed)

Ship Weight
Blower Unit - 1,050 lbs

Filter Cabinet - 265 lbs

Dimensions
Blower Unit - 32" wide 72" high 43" long

Filter Cabinet - 26" wide 80" high 28" long

Filtration
Primary/Secondary Filter - Dual-ply Dustlok® polyester pad
HEPA Filter - Wood Frame 99.97% Efficiency .3 micron individually certified

Optional - 95% ASHRAE bag filter

Optional - OdorGuard600 Activated Carbon Filter for odor control

Power Requirement
230V/60 Hz 3 phase 45 amp

Cabinet
Blower Cabinet - Aircraft grade aluminum, closed end rivet construction. All seams are silicone sealed before riveting. Four 4" casters for ease of movement.

Filter Cabinets - Powder Coated Galvanized steel, closed end rivet construction, All seams are silicone sealed before riveting. Four 3" casters for ease of movement.

Controls
Dual motor starter boxes featuring 32A disconnects with lockout feature
Start and Stop push button switches for each blower
Power On Indicator and Individual Hour Meters for each blower
Each filter cabinet is individually monitored for filter loading by a 0"-5" WC differential pressure gauge.

Outlet Ring Size
Two 24" diameter outlet rings

Accessories
